PW1100G-JM

Maintenance, Repair & Overhaul

PW1100G-JM (MRO)

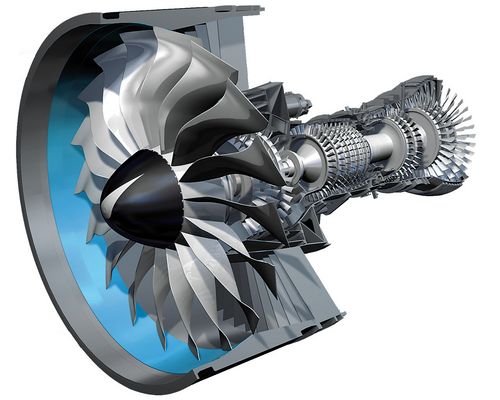

The PW1100G-JM is a member of Pratt & Whitney’s PurePower® engine family and powers the latest generation of narrowbody aircraft, the Airbus A320neo. The reduction gearbox between the fan and the low-pressure compressor, as well as the low-pressure turbine, enable lower fan pressure ratios, and, in turn, higher bypass ratios. These developments lead to very high overall efficiency and significantly reduce fuel consumption, carbon dioxide emissions and noise generation. Compared to its predecessors, the engine reduces fuel burn and CO2 emissions by 16 percent and cuts noise footprint levels by 75 percent.

MTU has an 18 percent stake in the PW1100G-JM and the company is responsible for the high-speed low-pressure turbine, the first four stages of the high-pressure compressor and brush seals. In Munich, MTU assembles one third of all PW1100G-JM engines.

MTU Maintenance is responsible for providing MRO services for the engines: The company’s share in the aftermarket business is equal to its share in the program. Work is carried out at MTU Maintenance Hannover.

Development and production

  • Various stages of the high-pressure compressor
  • High-speed low-pressure turbine
  • Brush seals

Applications

  • Airbus A320neo

Partners

  • Pratt & Whitney
  • Japanese Aero Engines Corporation (JAEC, Japan)
  • GKN Aerospace

Technical specifications

  • Thrust (lb.): 24.4 – 35k
  • Fuel burn (vs. current engines): -16%
  • Noise (vs. stage 4): -20dB
  • Emissions – CO2 reduction per a/c (tonnes annually): -3.600
  • Emissions – NOX (margin to CAEP 6): -55%
  • Fan diameter: 81 in
  • Stage count: 1-G-3-8-2-3
