LEAP

LEAP (MRO)

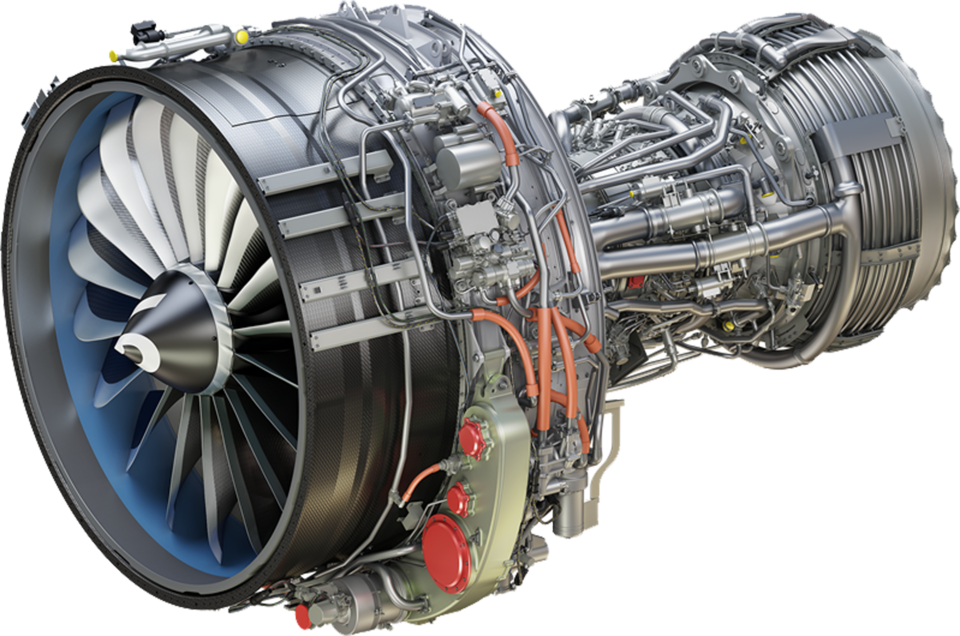

The LEAP engine family includes three different models covering a thrust range from 23,000 to 35,000 lbf. LEAP engines equip Airbus A320neo twinjets, COMAC C919 and the Boeing 737 MAX. Manufactured by CFM Aero Engines, a consortium between GE and Safran Aircraft Engines, the engine has amassed over 17,500 orders and commitments for the coming years.

LEAP-1A/-1B at MTU Maintenance

Services for the LEAP engine family are provided at our MTU Maintenance Zhuhai facility. We have short-term slot availability, fast turnaround times, competitive pricing structures and are able to flexibly adapt to airline’s planning in this current market environment.

MTU Maintenance Zhuhai was one of the first MRO shops worldwide to obtain LEAP maintenance capability, and was the first MRO shop outside the OEM network that could provide quick-turn shop visits service to address any early technical issues in the LEAP fleet.

We are EASA/FAA and CAAC approved on this engine type and ideally located in Asia’s aviation hub.  Further, we offer lease engine options through MTU Maintenance Lease Services B.V. in Amsterdam.





Data

Data

Facts -1A

  • Two-shaft turbofan
  • Ten-stage high-pressure compressor
  • Two-stage high-pressure turbine
  • Seven-stage low-pressure turbine

Facts -1B

  • Two-shaft turbofan
  • Ten-stage high-pressure compressor
  • Two-stage high-pressure turbine
  • Five-stage low-pressure turbine

Technical Data

 LEAP 1ALEAP 1B
Max. thrust35,000 lbf28,000 lbf
By-pass Ratio118.6
HPC Pressure Ratio2222
Overall Pressure Ratio4041
Length3328 mm3147 mm
Diameter1981 mm1763 mm
Weight3008 kg2780 kg
