CF6

CF6

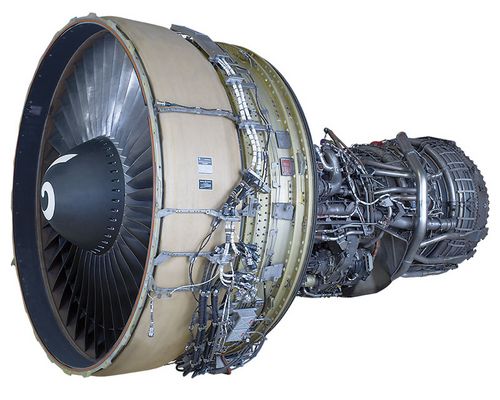

MTU has been a risk-and-revenue sharing partner in this GE Aviation engine program since 1971, when the company produced the first parts for the CF6-50. In the meantime, MTU manufactures parts for the entire CF6 family (CF6-6, CF6-80A, -80C, -80E). The CF6 is a two-shaft turbofan which powers medium- to long-haul Airbus and Boeing wide-body aircraft.

For the CF6 MTU Aero Engines produces turbine and compressor parts. Having been manufactured for over 40 years, this engine now figures more and more importantly in MTU’s repair and spare parts business.

Facts

Facts

  • Two-shaft-turbofan engine
  • Active clearance control of low-pressure turbine
  • Digital control unit
  • On-condition maintenance

Production

  • High-pressure turbine (various parts)
  • High-pressure compressor (various parts)
  • Low-pressure turbine (various parts)
  • Low-pressure compressor (various parts)

Support

  • Repair and overhaul by MTU Maintenance

Partners

  • GE
  • Safran Aircraft Engines
  • GKN Aerospace
  • Avio Aero

Applications

  • Boeing DC-10-10
  • Boeing 747
  • Boeing DC-10-15
  • Boeing DC-10-30
  • Airbus A300
  • Airbus A310
  • Boeing 767
  • Airbus A300
  • Airbus A310
  • Boeing 767
  • Boeing MD-11
  • Boeing 747
  • Airbus A330

Technical Data

CF6-80CCF6-80E
Max. thrust63,500 lbf72,000 lbf
Bypass ratio5.3:15.1:1
Pressure ratio31.8:134.8:1
Length168 in168 in
Max. fan diameter106 in114 in
Weight9,860 lbs11,225 lbs
