V2500

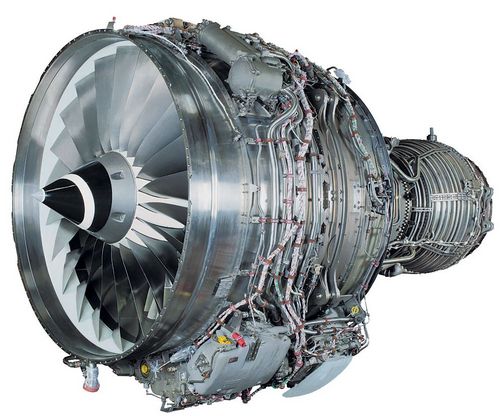

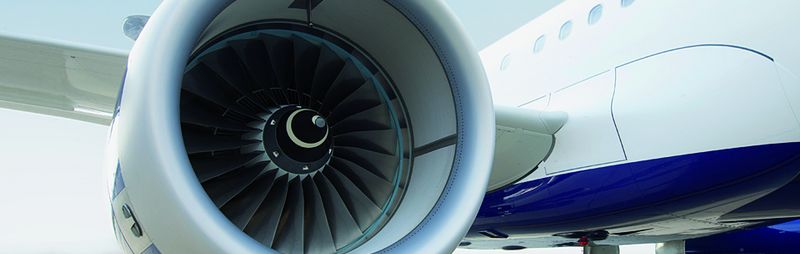

The IAE V2500 is a two-shaft turbofan targeted at short- to medium-haul transports and is used among others on the Airbus A319, A320 and A321. MTU holds a 16% stake in the IAE V2500 and is responsible for the complete low-pressure turbine and numerous add-on parts. In September 2008, the IAE V2500Select-OneTM, an upgrated version of the IAE V2500-A5, was successfully introduced into service. Major improvements include a one-percent reduction in fuel burn and a 20-percent increase in on-wing time.

MTU develops and manufactures the IAE V2500 engine in cooperation with Pratt & Whitney and Japanese Aero Engines Corporation. For the launch in 1983, a joint company – International Aero Engines AG (IAE) – was established.

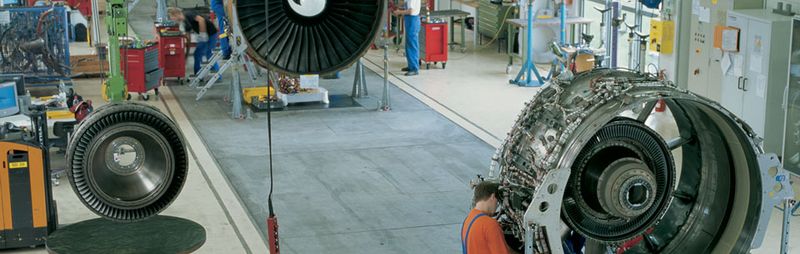

The engine has now logged more than 250 million flight hours. The V2500-A5 and V2500-E5 models are maintained by MTU Maintenance. For this purpose, it offers a very broad range of services covering all aspects of maintenance and overhaul, including extensive repair capabilities.

Overview of maintenance capabilities

  • Customised service packages and individual repair solutions
  • Modification, retrofitting, repair and overhaul
  • State-of-the-art repair service for entire engines, and comprehensive parts repair
  • Innovative high-tech repair processes (MTUPlus Repairs)
  • On-wing support
  • 24/365 AOG hotline and spare parts provisioning in AOG emergencies
  • Engine condition and trend monitoring
  • Engineering support
  • Provisioning of lease engines through MTU's e-pool services
  • 1st run warranty repairs

Facts

  • EIS: 1989
  • Two-shaft turbofan engine in the thrust category 22,000-33,000 lbf
  • Fan without snubbers
  • Powder-metal turbine discs
  • Single-crystal turbine blades
  • Active clearance control
  • Modular design
  • Digital engine control unit
  • On-condition maintenance

MTU competencies

  • Program share: 16%
  • Development of low-pressure turbine, casing, accessories and externals
  • Engine testing
  • Manufacture of various parts of the low-pressure turbine and the casing
  • Maintenance at MTU Maintenance Hannover (-A5), MTU Maintenance Canada (-A5/E5) and MTU Maintenance Zhuhai (-A5) as well as on-site service activities (-A5)

    Start year MRO: 1997 (-A5) /2018 (-E5)
    Shop visits (2023): > 6,600
    Workscope: Engine MRO

Partners

  • Pratt & Whitney
  • Japanese Aero Engines Corporation
  • PWAEI

Applications

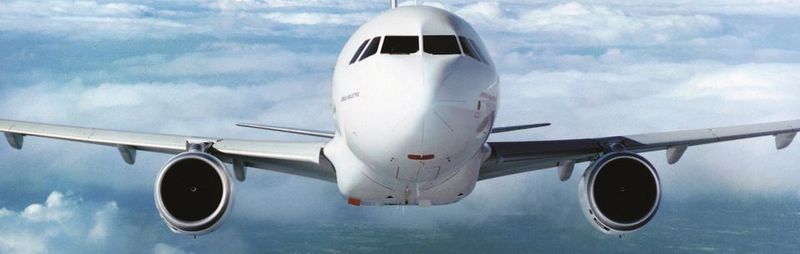

  • Airbus A319
  • Airbus A320

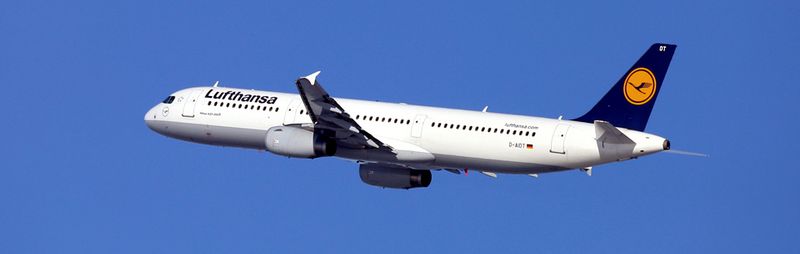

  • Airbus A321
  • Boeing MD-90

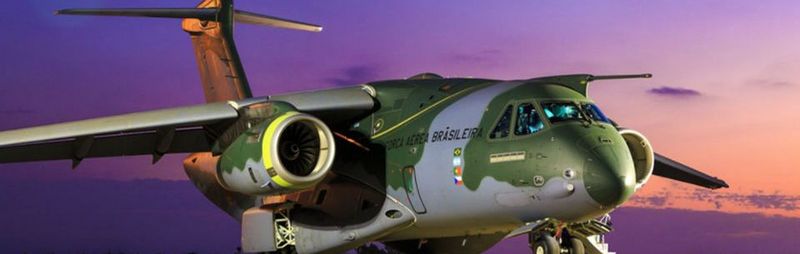

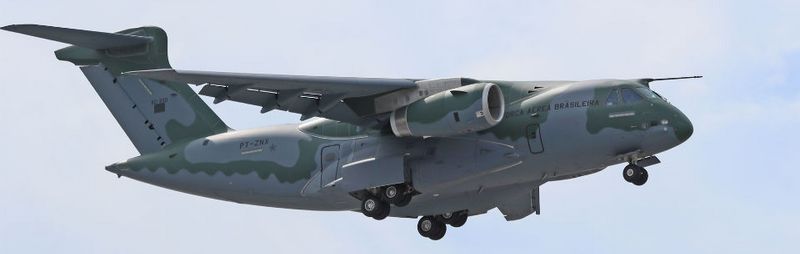

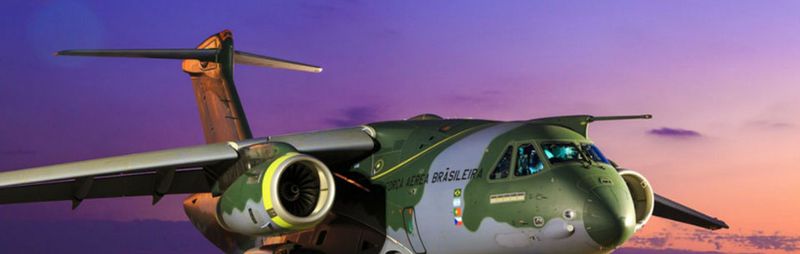

  • C-390 Millennium

Technical data

Max. thrust33,000 lbf
Bypass ratio4.5:1
Pressure ratio33.4:1
Length126 in
Fan diameter64 in
Weight5,439 lbs
