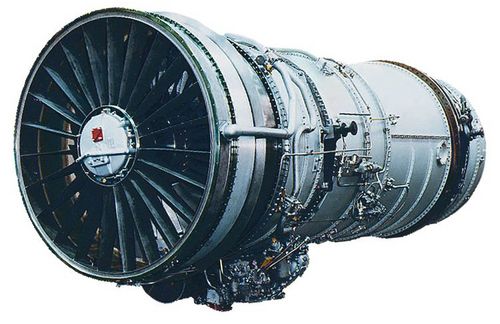

JT8D-200

The JT8D-200 is a series of Pratt & Whitney's JT8D family and, with more than 14,750 units sold, one of the world's best-selling jet engine families. This series is used in the Boeing MD-80 aircraft family. Since entering service, the entire JT8D family has logged more than 673 million flight hours. Today, 2,400 engines are still in service with more than 350 operators. E-Kit, a new combustion system, has reduced the JT8D-200's nitrogen oxide emissions by 25 percent, ensuring that current environmental regulations are met and that the series can continue to be operated.

MTU has been a risk-and-revenue sharing partner in this Pratt & Whitney engine program since 1984 and holds a 12.5-percent share. The company is responsible for the manufacture of individual parts of various assemblies.


Facts

  • EIS: 1980
  • Two-shaft turbofan engine in the thrust category 18,500 lbf–21,700 lbf
  • Single-stage fan
  • Six-stage low-pressure compressor
  • Three-stage low-pressure turbine
  • Seven-stage high-pressure compressor
  • Single-stage high-pressure turbine
  • Improved sealing systems
  • Cooling of the high-pressure turbine
  • Exhaust gas mixer

MTU competencies

  • Program share: 12.5%
  • Modifications of the low-pressure turbine under development
  • Manufacture of a range of low-pressure turbine parts as well as of high-pressure compressor and turbine parts and housing

Partners

  • Pratt & Whitney
  • Mitsubishi
  • GKN Aerospace

Application

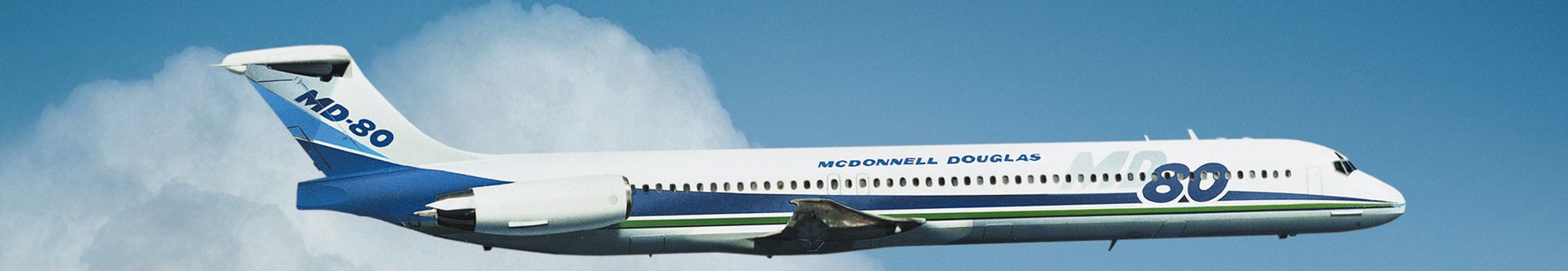

  • Boeing MD-80

Technical Data


Max. thrust21,700 lbf
Bypass ratio1.74:1
Pressure ratio18.2:1-19.4:1
Length169 in
Fan diameter54 in
Weight4,515 lbs
