PW500: Powering midsize business jets

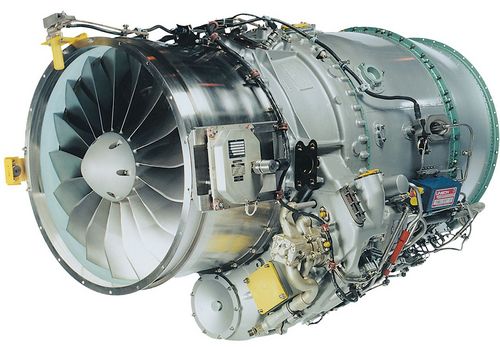

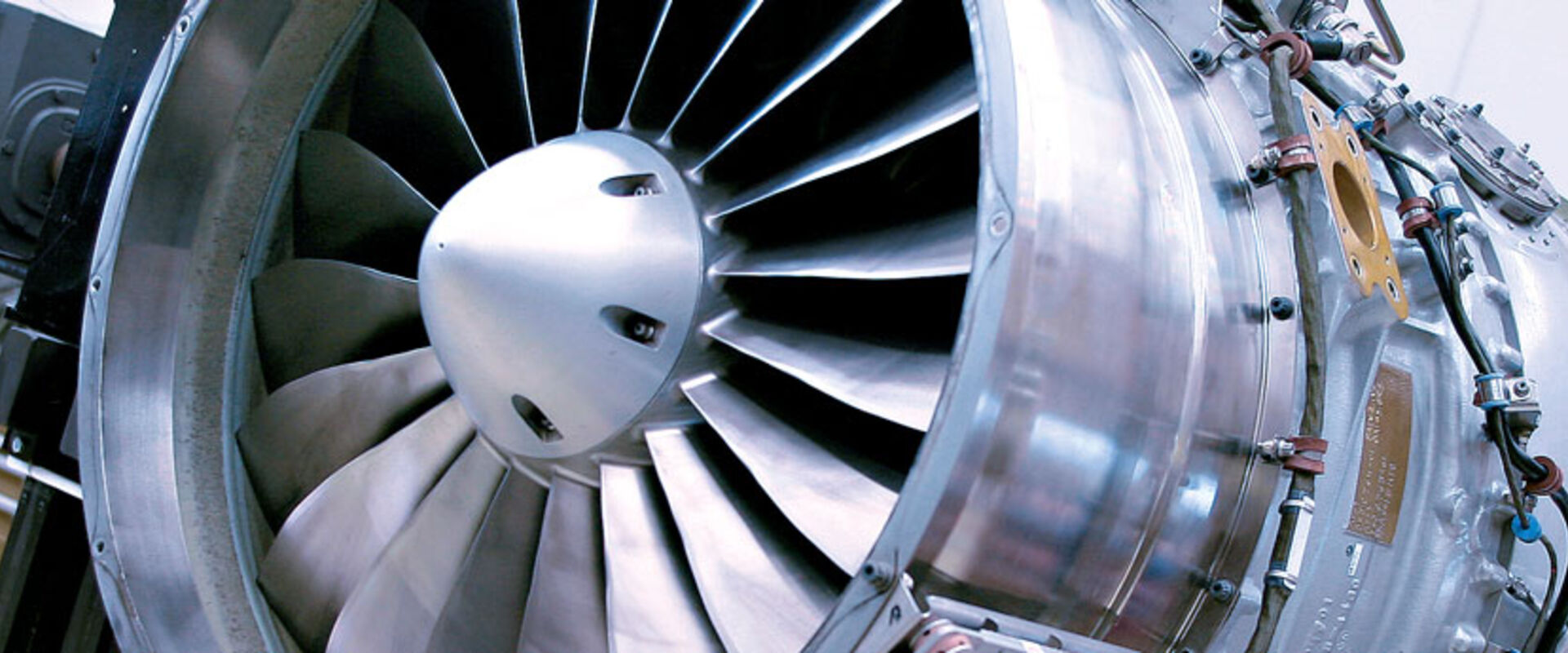

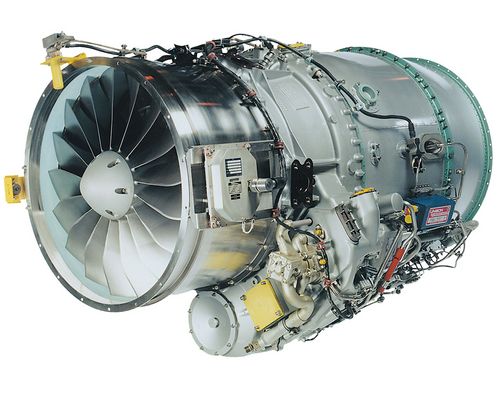

The PW500 engines are two-shaft turbofan engines developed specifically to power midsize business jets. MTU collaborates with Pratt & Whitney Canada on the PW500.


MTU’s involvement in the PW500

MTU Aero Engines has had a program share of 25 percent in the development and manufacture of this engine family since 1993. MTU’s involvement covers the PW530 and PW545 models. The company focuses on developing and manufacturing the entire low-pressure turbine including exit case and mixer.

Facts

  • EIS: 1997
  • The PW500 is a two-shaft turbofan engine with a thrust category of 3,000-4,500 lbf
  • Single-stage fan with integral blades
  • Three-stage high-pressure compressor with two axial stages (blisks) and one radial stage
  • Reverse-flow annular combustion chamber
  • Single-stage high-pressure turbine with cooled vanes
  • Bypass casing over the full engine length
  • Mixing of cold and hot gas streams in the mixer
  • Two-stage low-pressure turbine (PW530)
  • Booster stage in the low-pressure compressor (PW545)
  • Three-stage low-pressure turbine (PW545)
  • Digital engine control (EEC) with hydromechanical backup (PW545)

MTU competencies

  • Program share PW530: 25%
  • Program share PW545: 25%
  • Development and manufacture of the low-pressure turbine, the outlet casing and the mixer (for both models)
  • Maintenance at MTU Maintenance Berlin-Brandenburg

    Start year MRO: 2005
    Shop visits (2023): > 250
    Workscope: Engine MRO

Partner

  • Pratt & Whitney Canada

Technical Data

Max. thrust (Start)4,500 lbf
Bypass ratio4.1:1
Pressure ratio15.5:1
Length5.6 ft
Fan diameter2.3 ft
Weight824 lbs

Applications

  • Cessna Citation Bravo
  • Cessna Citation Excel
  • Cessna Citation XLS
  • Cessna Citation XLS+
  • Cessna Citation Ascend
  • General Atomics Predator C ("Avenger")

Sales Contact

Customer Support / AOG-Hotline
MRO Pratt & Whitney Canada PT6A, PW200, PW300, PW500
Location Berlin-Brandenburg
Phone: +49 3378 824-9009
pwc.controlcentre@pwc.ca
Phone: +49 3378 824-9009
pwc.controlcentre@pwc.ca
Pratt & Whitney Canada Customer First Centre
Phone: +1 450 647 8000
Phone: +1 450 647 8000
