Power for the Airbus Helicopters H135

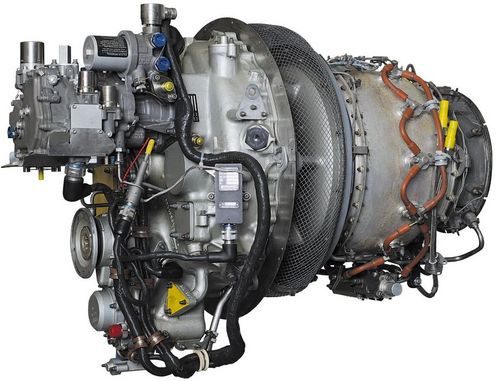

Pratt & Whitney Canada's PW200 powers light-to-medium weight helicopters. It is characterized amongst other things by its simple and robust design featuring a centrifugal compressor, a reverse-flow combustor and a single-stage turbine. The engine boasts a full authority digital engine control unit.
MTU's involvement in the PW200
Maintenance is carried out via MTU Maintenance Berlin-Brandenburg within the Pratt & Whitney Canada Customer Service Center—a joint venture between MTU Maintenance Berlin-Brandenburg and Pratt & Whitney Canada.
Overview of maintenance capabilities
- Modification, retrofitting, repair and overhaul
- 1st run warranty repairs
- State-of-the-art-repair service for engine components
- TBO extensions
- On-wing support provided by the Mobile Repair Team, including certification
- Engineering support
- 24/365 AOG hotline
- Provisioning of rental engines through the CSC asset management
- Customized maintenance programs (FMP, ESP etc.)
Facts
- EIS: 1998
- The PW200 is a turboshaft engine with maximum power of 700 shp
- Free, single-stage power turbine
- Single-stage centrifugal compressor in titanium-aluminium alloy
- High-speed single-stage gas generator turbine
MTU competencies
- Maintenance by MTU Maintenance Berlin-Brandenburg within the worldwide Pratt & Whitney Canada Customer Service Centre network
Applications
- Airbus Helicopters EC135P1
- Airbus Helicopters H135
- Bell 427
Technical Data
| Max. starting thrust | 700 shp |
| Pressure ratio | 8:1 |
| Length | 3 - 3.4 ft |
| Diameter | 1.8 ft |
